Description

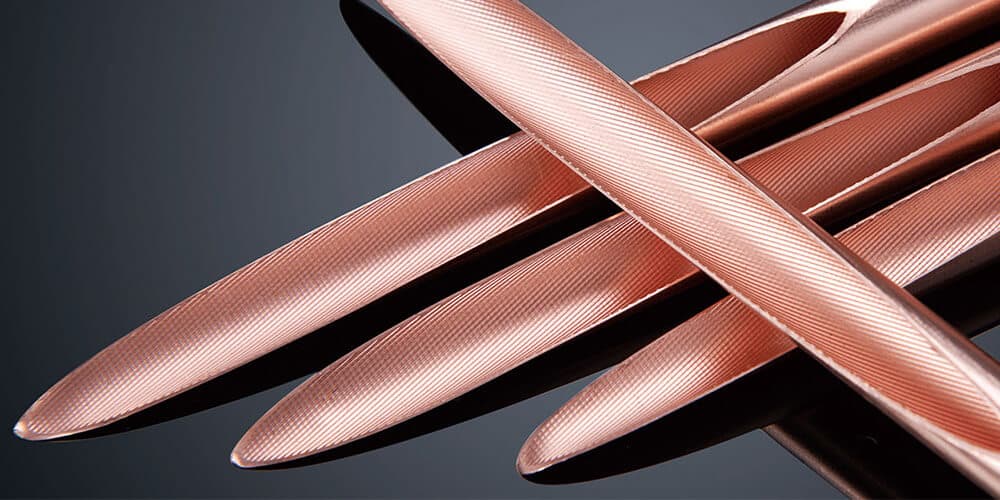

Our Inner Grooved Copper Tube Condenser Coil is engineered to deliver superior heat transfer performance in air conditioning and refrigeration systems. The internally grooved copper tubes increase refrigerant turbulence, enhance thermal efficiency, and reduce energy consumption compared to smooth tubes.
Widely used in HVAC condensers, evaporators, and refrigeration units, this condenser coil offers excellent corrosion resistance, stable pressure performance, and long service life. Tube diameter, fin material, and coil structure can be customized for OEM and project requirements. Supplied directly from an experienced China Xinxiang Changsheng Refrigeration Equipment Co., Ltd.manufacturer and supplier, suitable for bulk orders and long-term cooperation.
Custom Specifications for Inner Grooved Copper Tube Condenser Coil
1. Material: copper, aluminum, galvanized plate.
2. Copper pipe: diameterΦ5, Φ6, Φ7, Φ7.94, Φ9.52, inner grooved or smooth tube.
3. Aluminum foil: hydrophilic or bare
4. Fin type: louver fin, flat fin, corrugated fin
5. Pitch of fins: Ø5 1.5~5.0mm Ø6 1.4~6.0 mm Ø7 1.4~6.5 mm Ø7.94 1.4~5.0 mm Ø9.52 1.4~10.0 mm
6. Pitch of holes: 19.05×16.5mm, 21×18.20mm, 21×12.7mm, 21×18.2mm,25×21.65mm, 25.4×15.88mm,35.0×35.0mm, equilateral triangle arrangement.

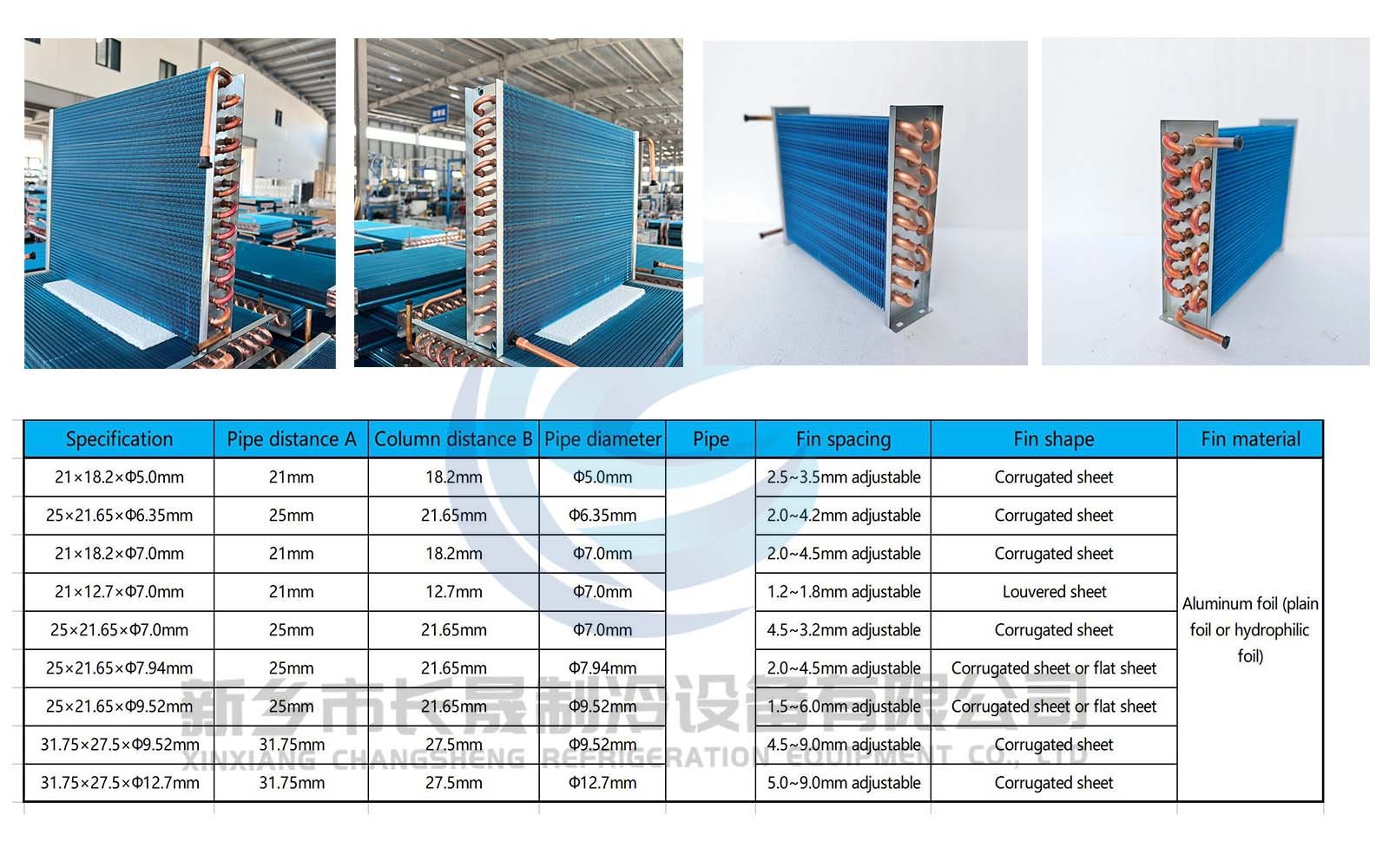

Inner Grooved Copper Tube Condenser Coil – Specifications & Custom Options
Suggested description：

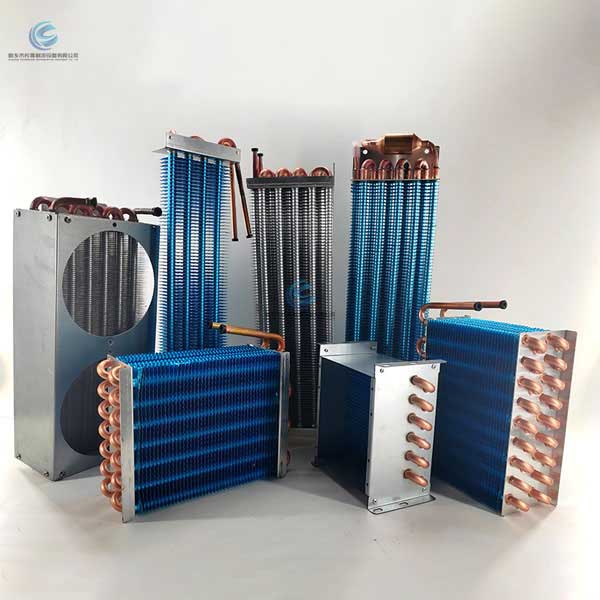

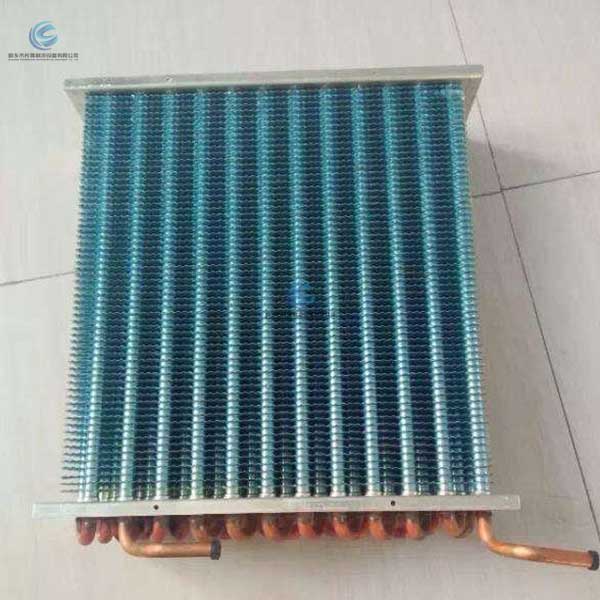

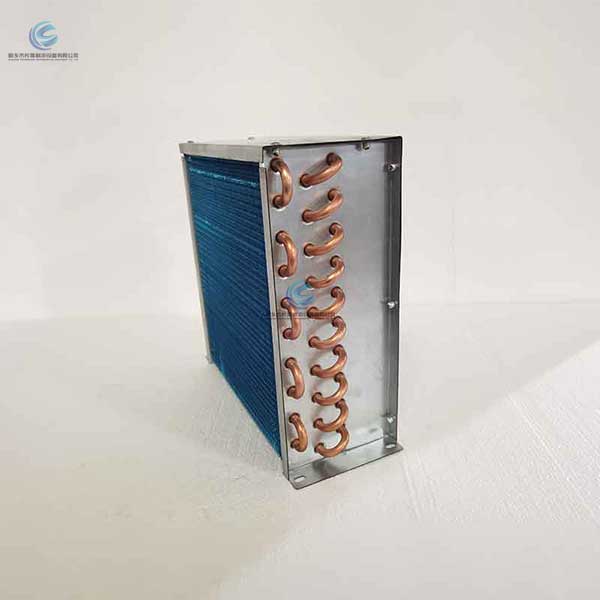

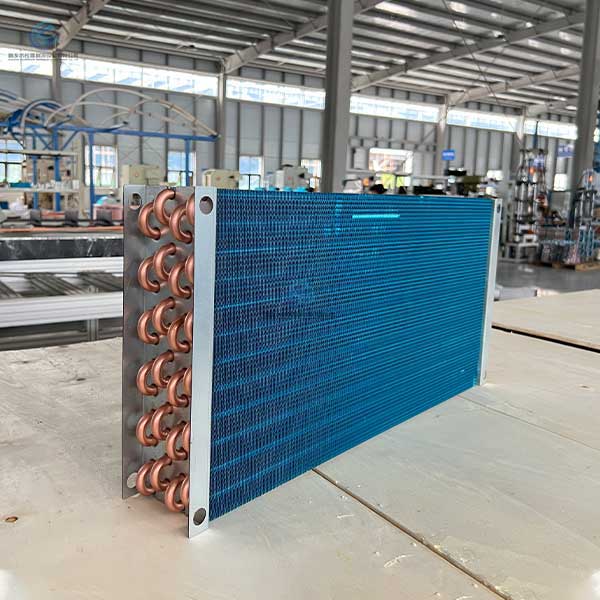

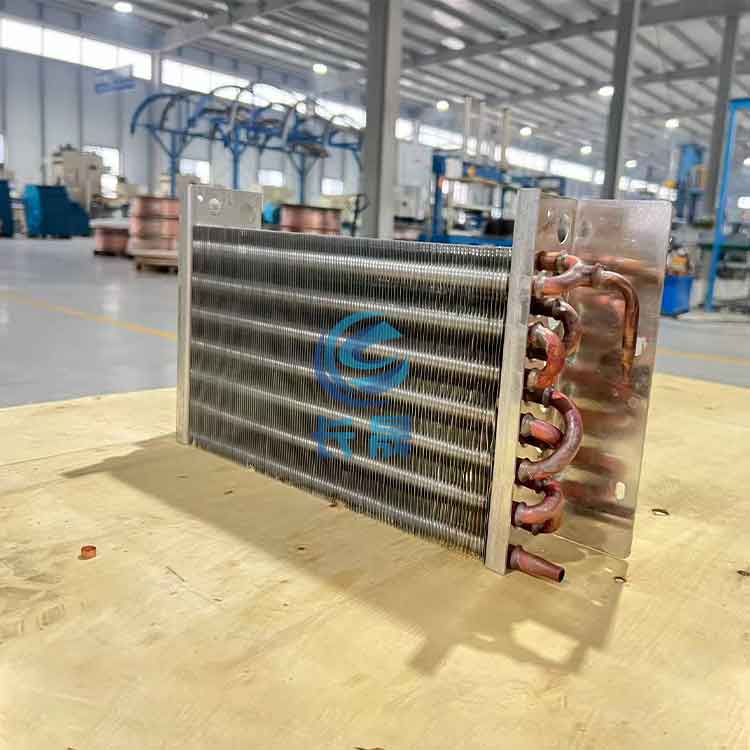

This image shows our inner grooved copper tube condenser coils with various tube diameters, fin spacing, fin types, and materials. All condenser coils are custom-manufactured to meet HVAC and refrigeration system requirements, ensuring high heat transfer efficiency and stable performance.
Offered Solution：
- Straight or formed, L or U or O-shaped coils
- Smooth inner grooved tube or super-grooved tube with different diameters and thickness of wall
- Different approach of plain, corrugated or louvered fin profiles
- LCE Coating anti corrosion and antimicrobial protection
- High-quality powder paint
- Pre-coated epoxy (gold) or blue (hydrophilic) fin material is available
- Maximum of 10 mm fin spacing
- Defrosting slots are available in certain cases
- Coating anti corrosion and antimicrobial protection
- Pre-coated epoxy (gold) or blue (hydrophilic) fin material is available
- Circuiting for horizontal, vertical or combined use
- Circuiting with tripods and with sub-cooling sections available
certificates
FAQ
Q1: How can I make an order?
A1: Inquiry → Quotation → Order → Payment → Delivery → Deal → Feedback
Q2: What is your terms of payment?
A2: T/T 30% as deposit, and 70% before delivery. We ll show you the photos of the products and packages before you pay the balance.
Q3: What is your terms of delivery?
A3:Convenience by Western Union/Money Gram/Trade Assurance/Paypal/T/T etc.
Q4: How about your delivery time?
A4: Generally, it will take 15 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5: Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6: What is your sample policy?
A6: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7: Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A8: 1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What is your Minimum Order Quality?
A9: Different products have different MOQ,but we can sell you even one piece if we have stock the model of you need.
