Cooling System Condenser Coil
Cooling System Condenser Coil

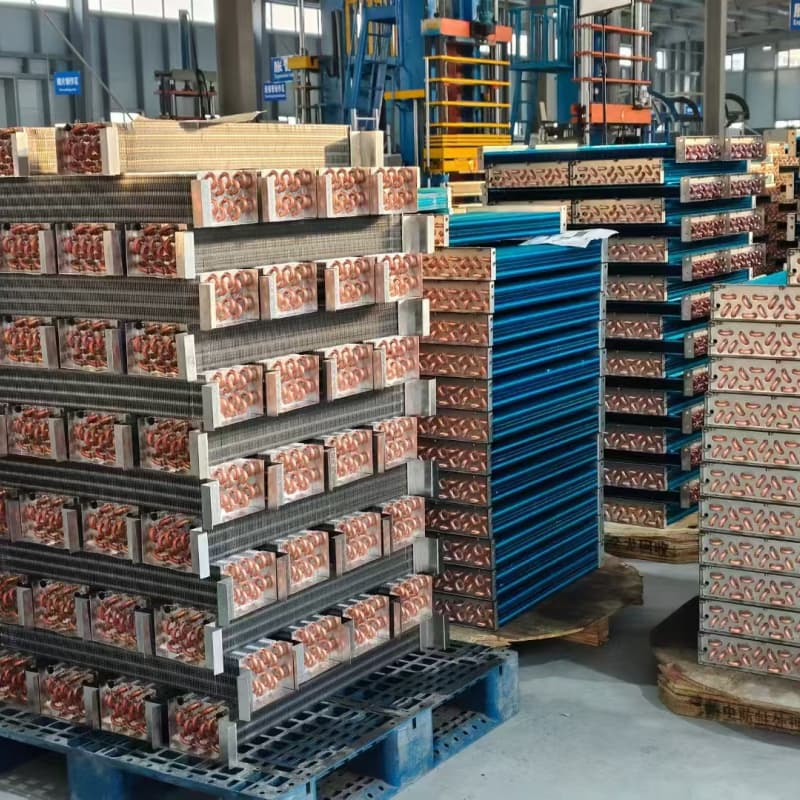

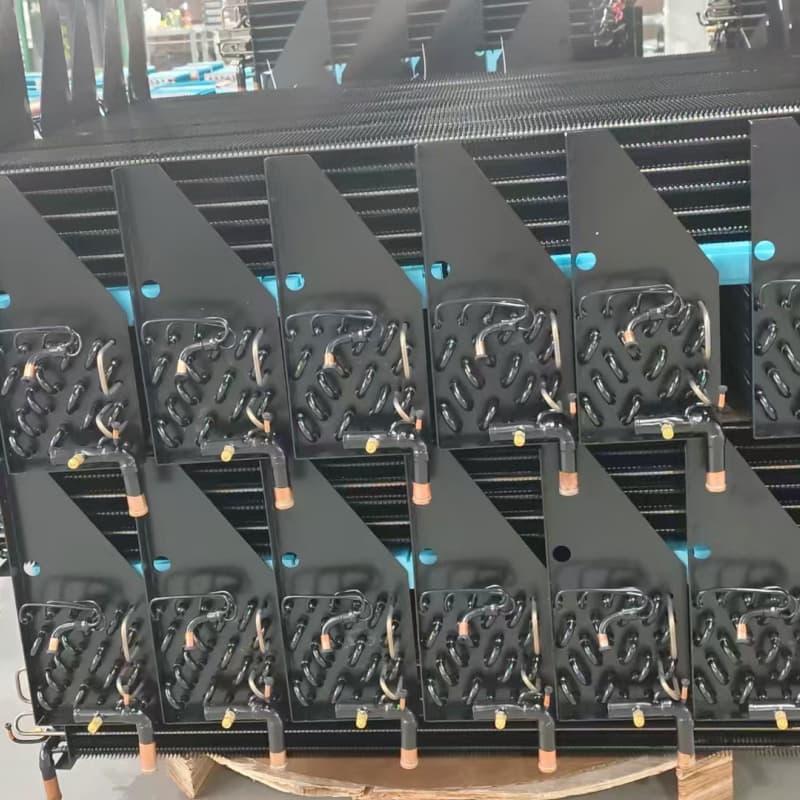

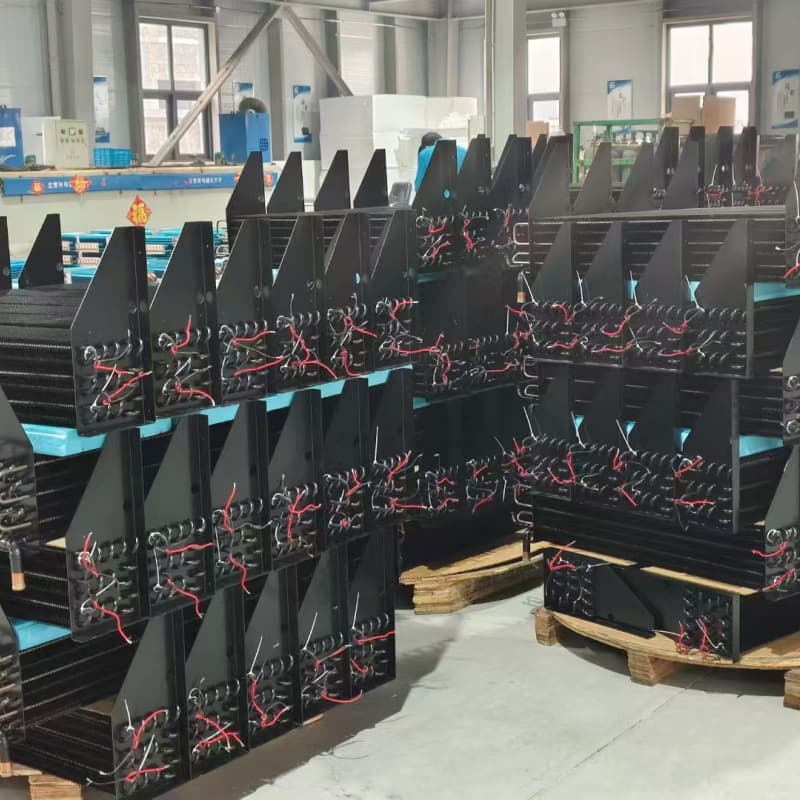

Our cooling system condenser coil is designed for efficient heat dissipation in HVAC and refrigeration systems. Made with high-quality copper tubes and aluminum fins, it ensures excellent thermal performance, stable operation, and long service life.
This condenser coil is widely used in air conditioners, commercial refrigeration units, and industrial cooling equipment. With flexible structural design, we support OEM and customized solutions based on your drawings or technical requirements.
Product Description
1. Material: copper, aluminum, galvanized plate.
2. Copper pipe: diameterΦ5, Φ6, Φ7, Φ7.94, Φ9.52, inner grooved or smooth tube.
3. Aluminum foil: hydrophilic or bare
4. Fin type: louver fin, flat fin, corrugated fin
5. Pitch of fins: Ø5 1.5~5.0mm Ø6 1.4~6.0 mm Ø7 1.4~6.5 mm Ø7.94 1.4~5.0 mm Ø9.52 1.4~10.0 mm
6. Pitch of holes: 19.05×16.5mm, 21×18.20mm, 21×12.7mm, 21×18.2mm,25×21.65mm, 25.4×15.88mm,35.0×35.0mm, equilateral triangle arrangement.
Key advantages:
-
High heat transfer efficiency
-
Durable copper tube & aluminum fin construction
-
Stable quality with strict factory inspection
-
Factory-direct supply with reliable lead time
Offered Solution：
- Straight or formed, L or U or O-shaped coils
- Smooth inner grooved tube or super-grooved tube with different diameters and thickness of wall
- Different approach of plain, corrugated or louvered fin profiles
- LCE Coating anti corrosion and antimicrobial protection
- High-quality powder paint
- Pre-coated epoxy (gold) or blue (hydrophilic) fin material is available
- Maximum of 10 mm fin spacing
- Defrosting slots are available in certain cases
- Coating anti corrosion and antimicrobial protection
- Pre-coated epoxy (gold) or blue (hydrophilic) fin material is available
- Circuiting for horizontal, vertical or combined use
- Circuiting with tripods and with sub-cooling sections available
certificates
FAQ
Q1: How is quality ensured?
A1: we have a one year quality warranty B L issue date. If the product does not work property as described, and the problem is proven to be at our fault, we will provide exchange services for the same specific item.
Q2: Do you provide OEM or ODM service?
A2: Yes. We can produce G-air standard products under customer brand or modify the products to satisfy customers personalized requirements, or work together with customer to design and produce a totally new products.
Q3: How long can I get the feedback after sending the inquiry?
A3:Usually you will get feedback within 30 minutes during the office hours and 12 hours after office hours.
Q4: How long is the production lead time?
A4: Usually the production lead time will be 20 days once order confirmed. Sometimes we have a few.
Q5: How do you make our business long-term and good relationship?
A5: We keep good quality and competitive price to ensure our customers benefit ， We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
